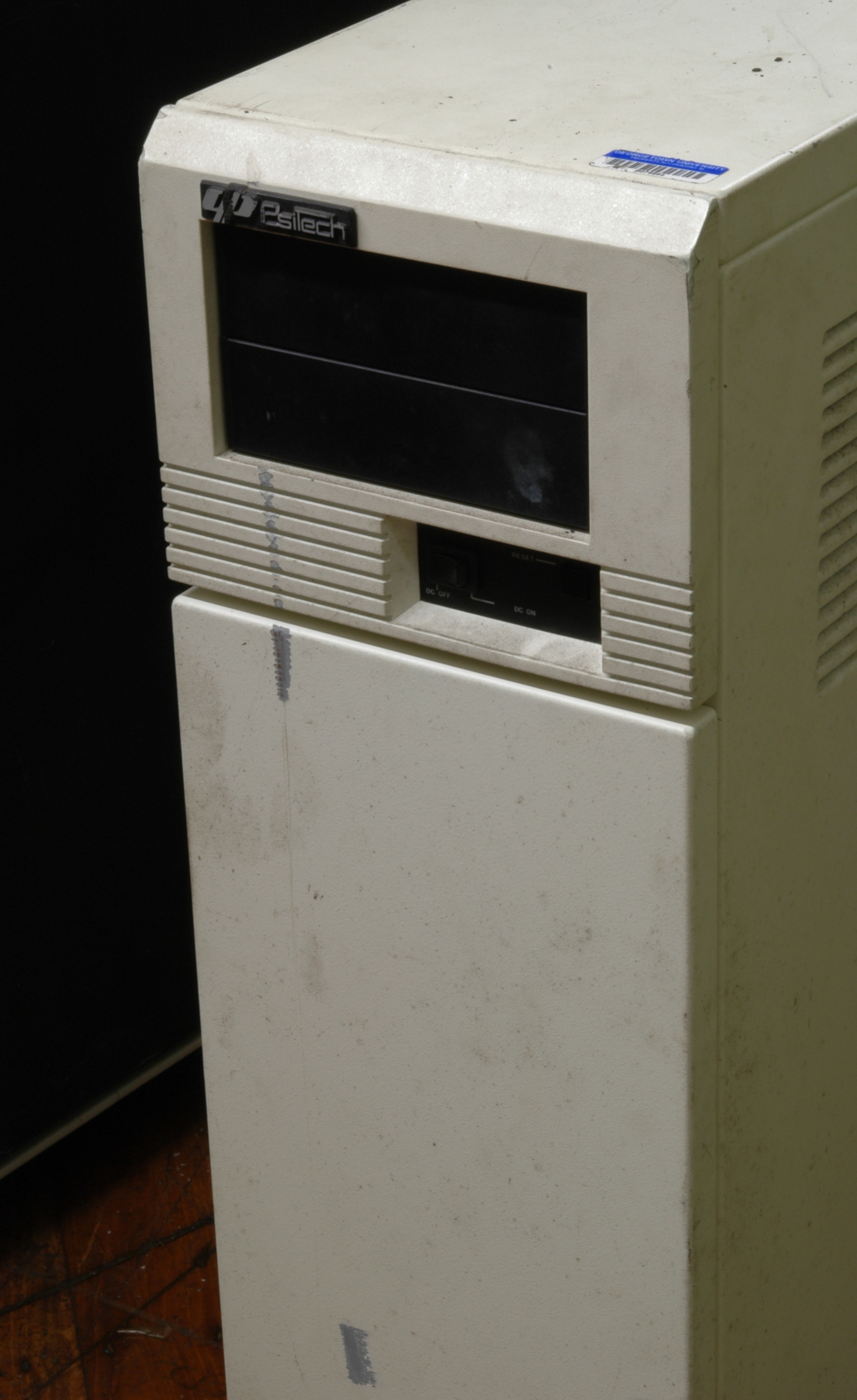

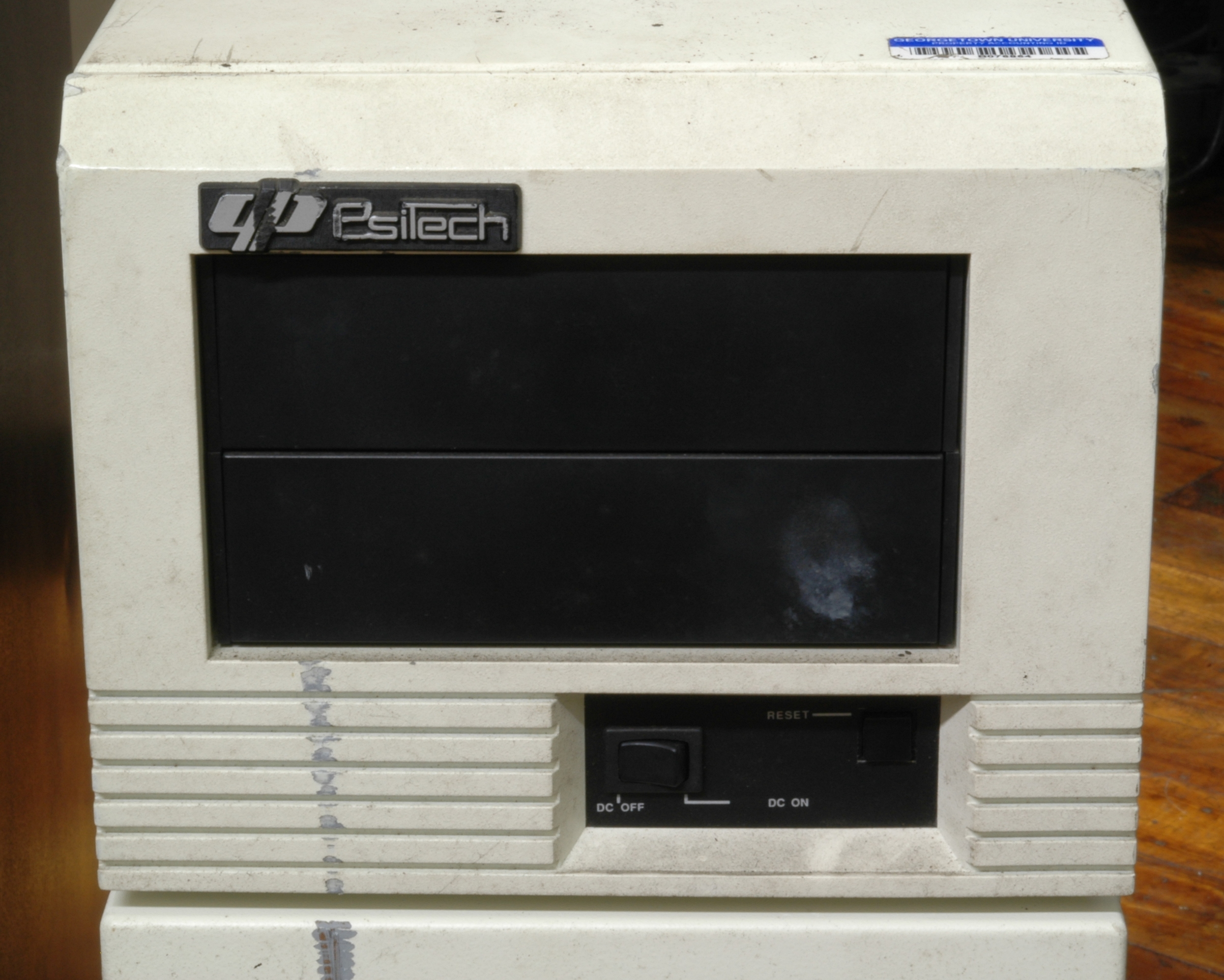

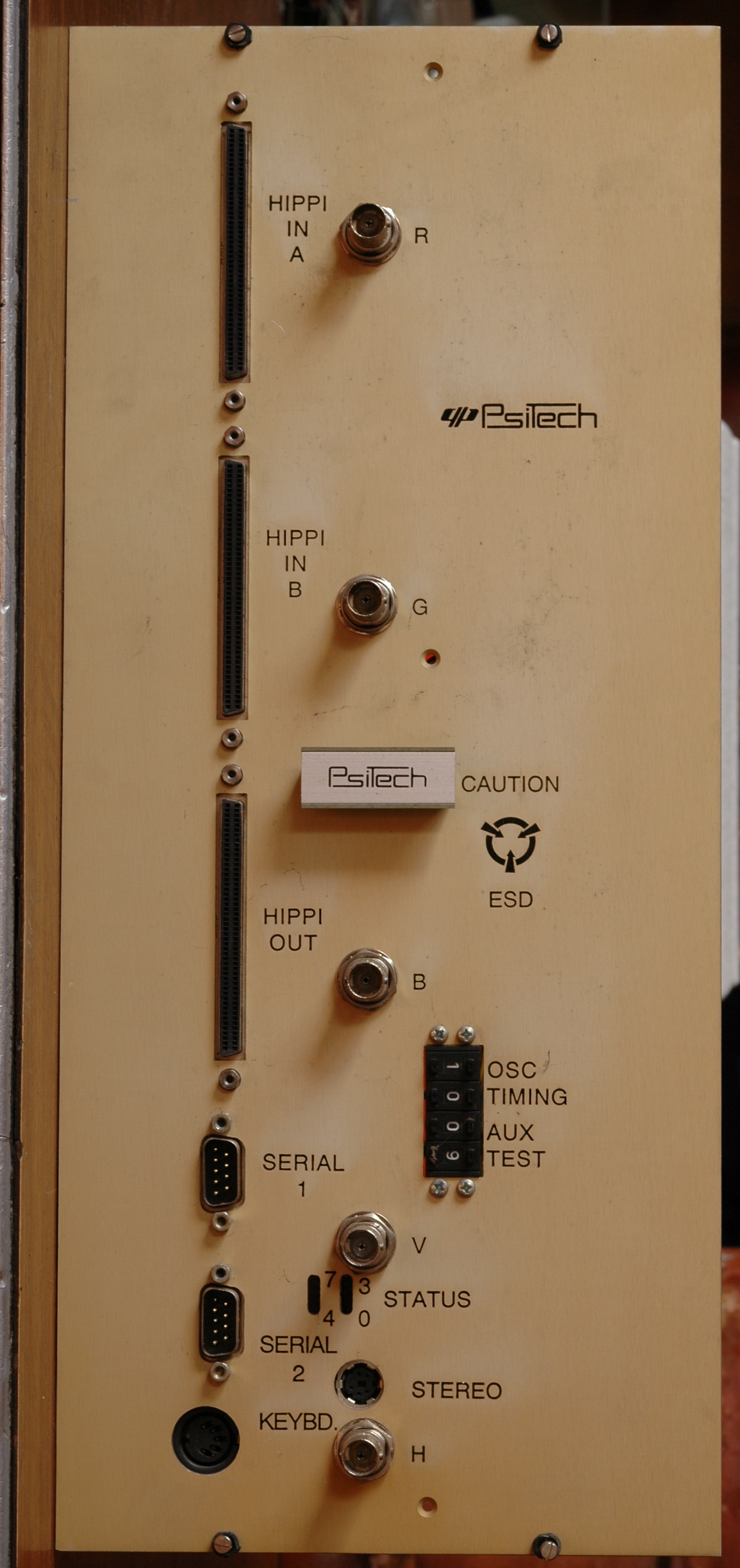

The Psitech HFB is a HIPPI frame buffer: a graphics display that
is connected to a supercomputer via a HIPPI interface. "Frame buffer"
implies that it is a very simple display, but that does not appear

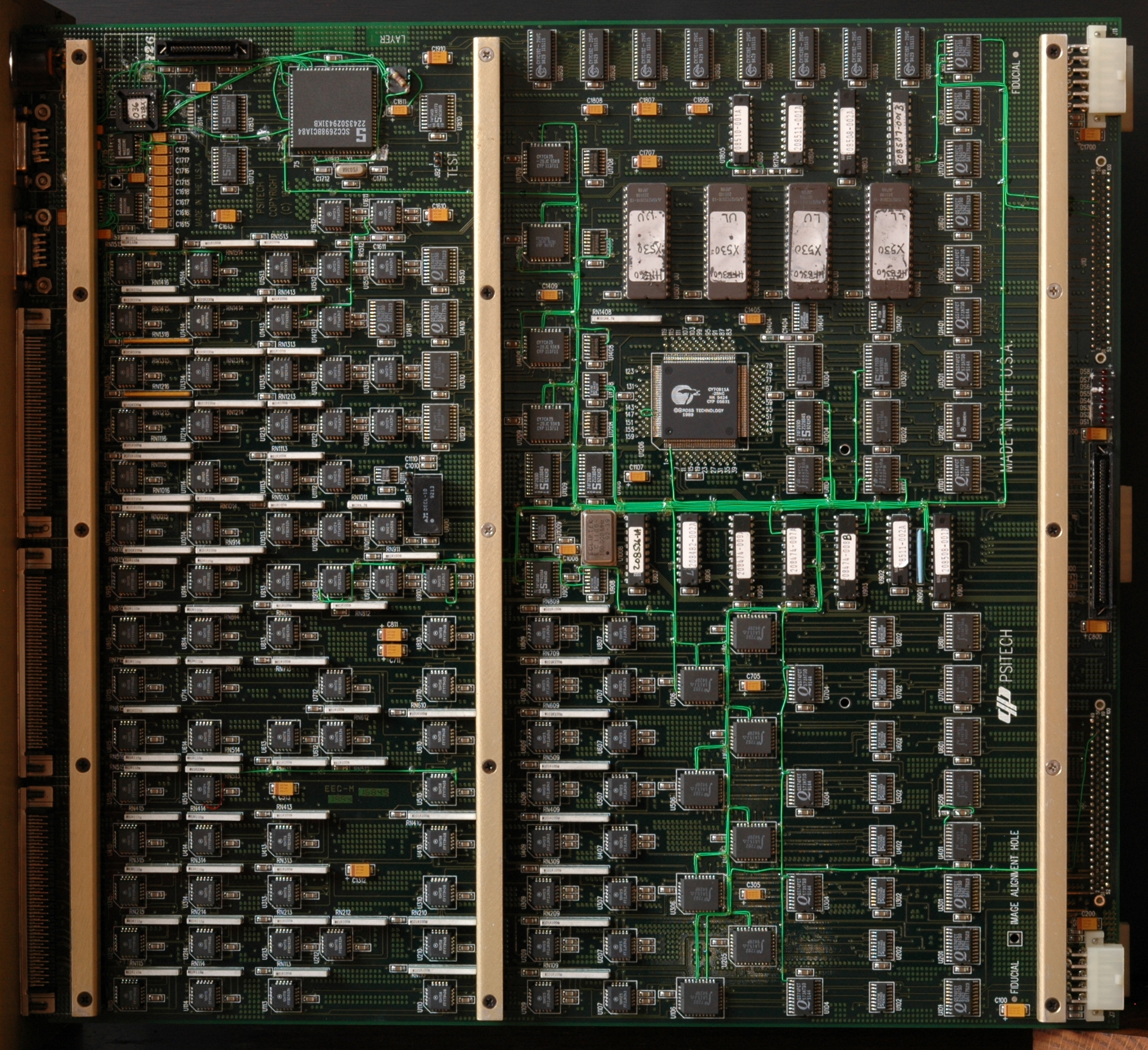

to be true: the system consists of two large boards: one is half

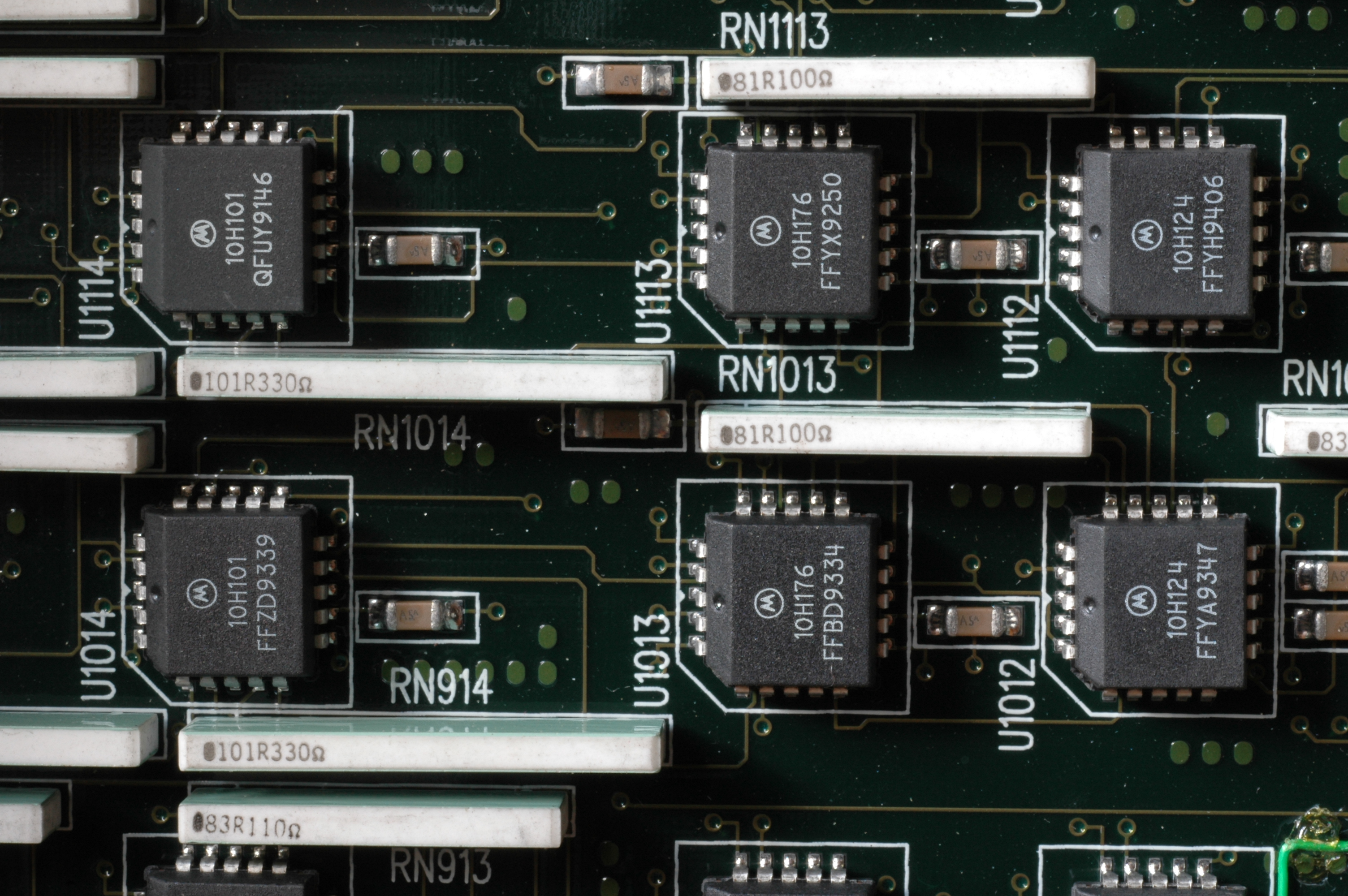

occupied by ECL logic for interfacing with the HIPPI ports, and the

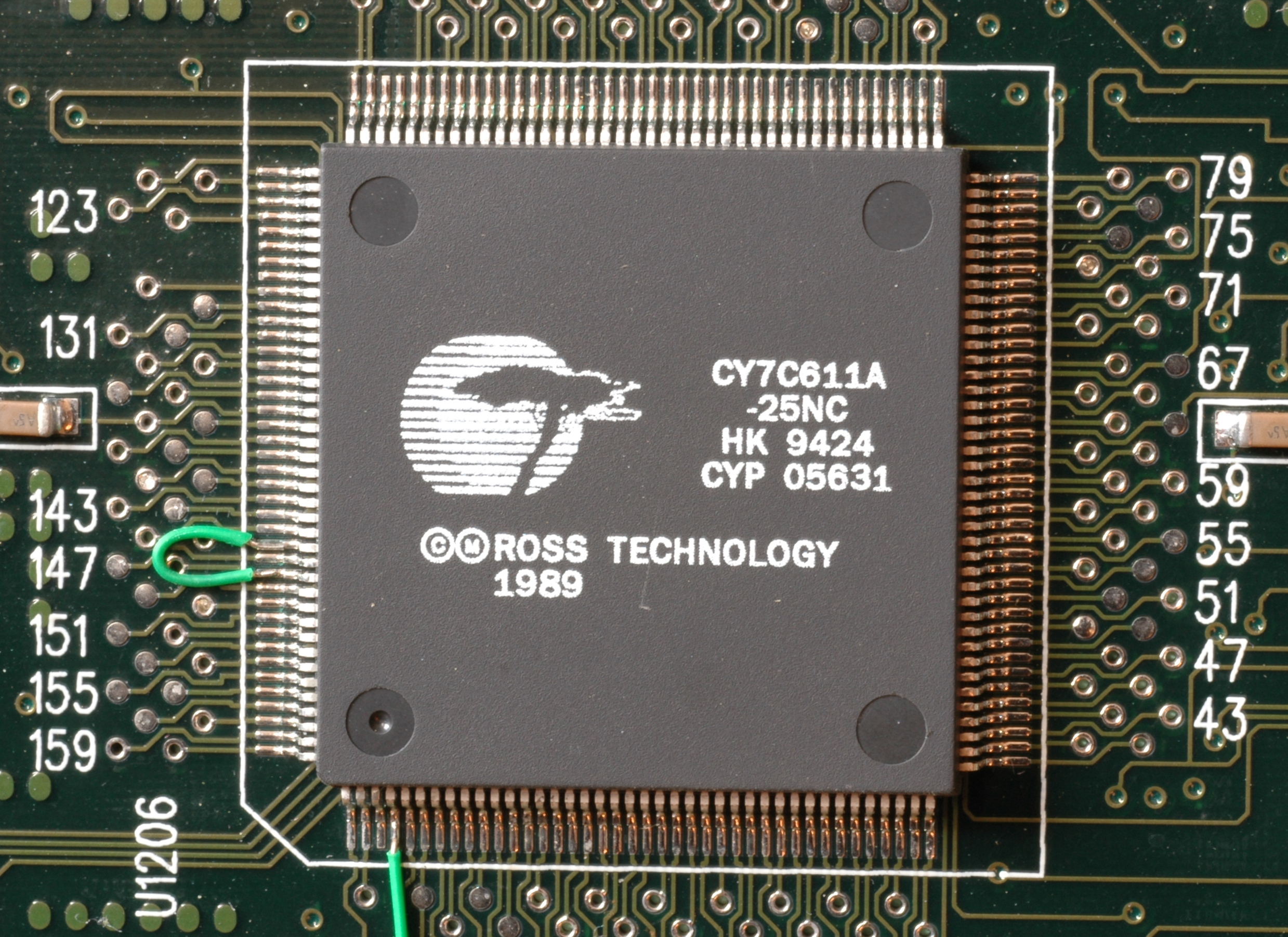

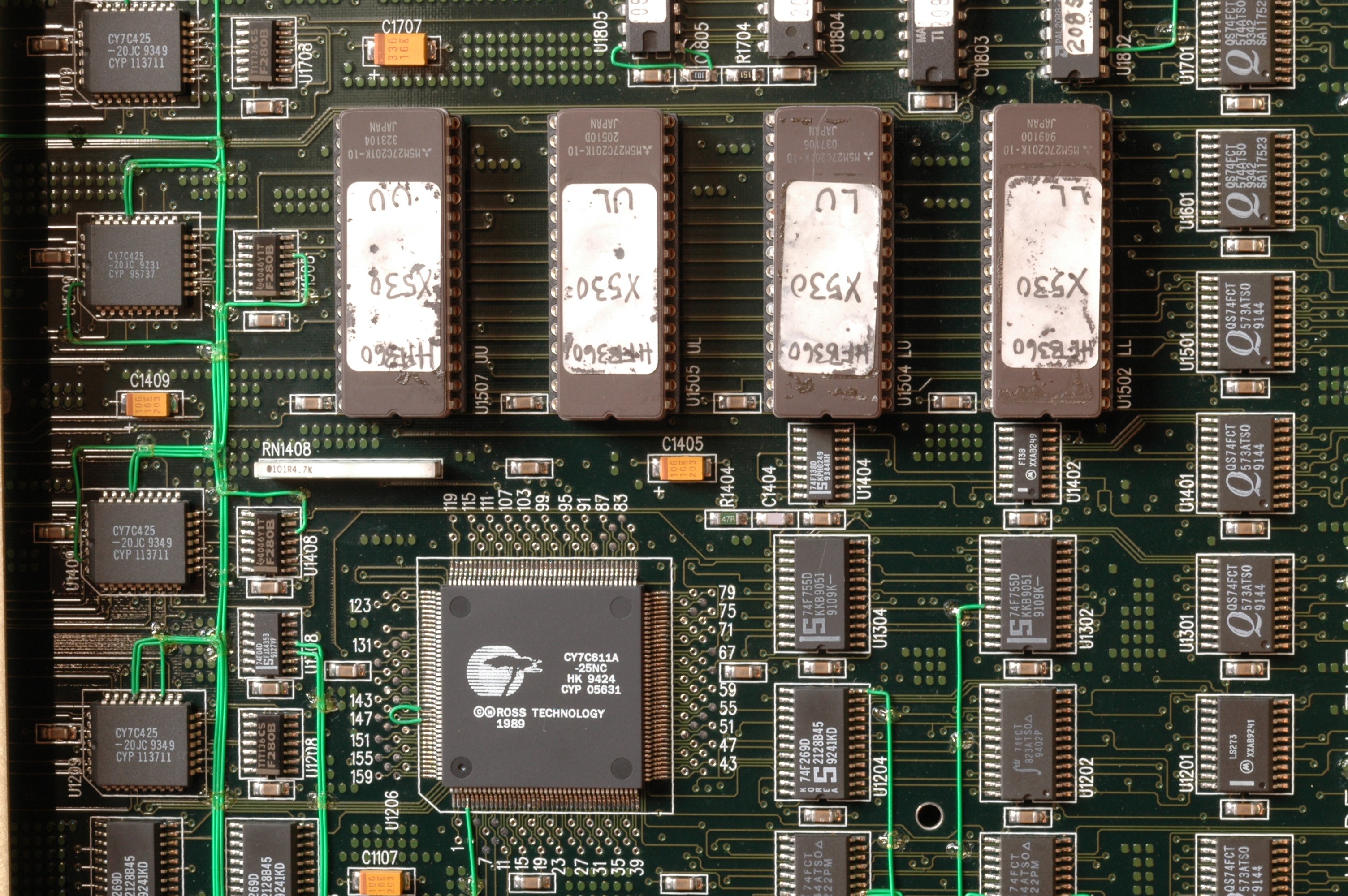

other half has a SPARC CPU, four PROMS, and assorted other logic.

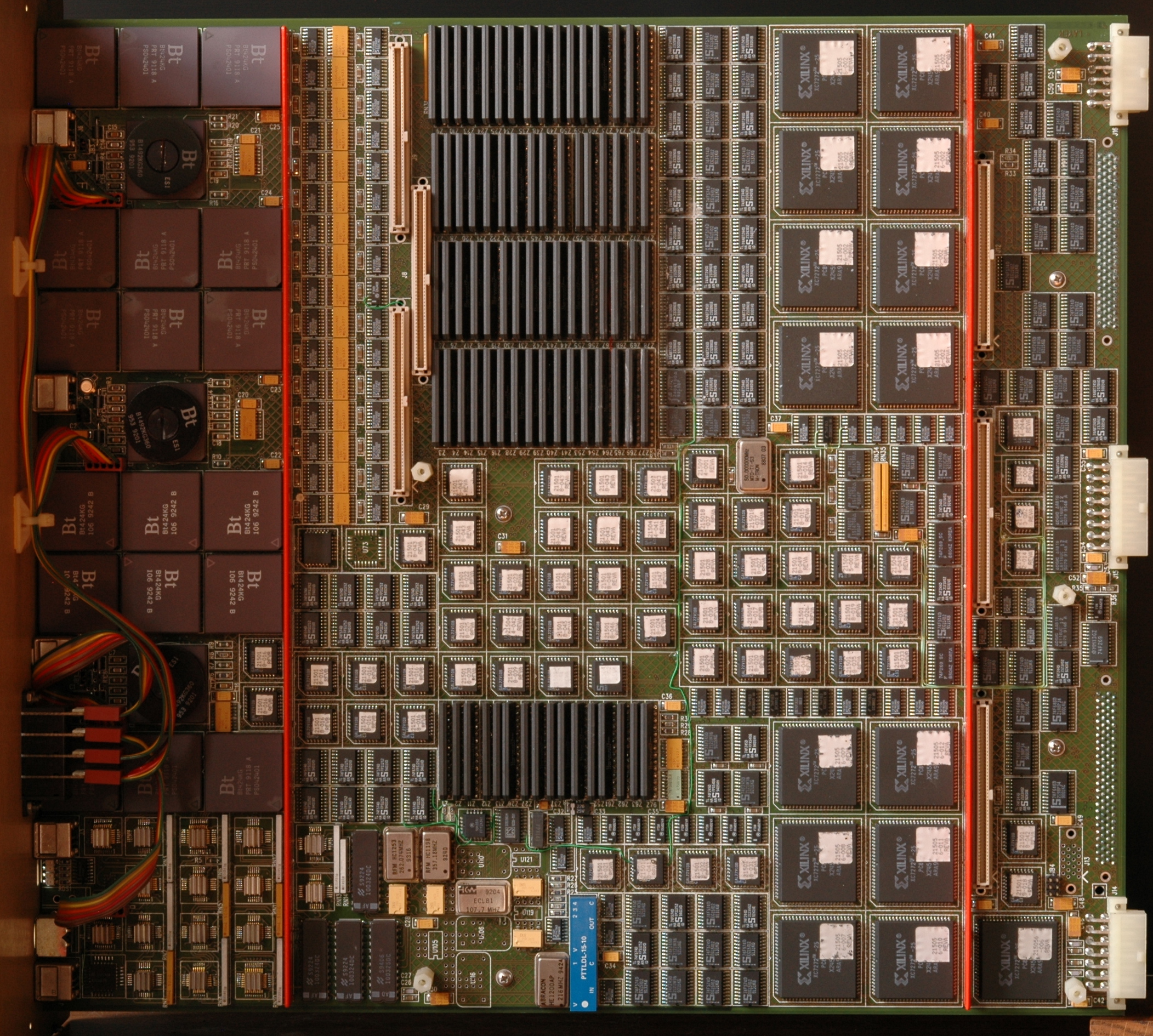

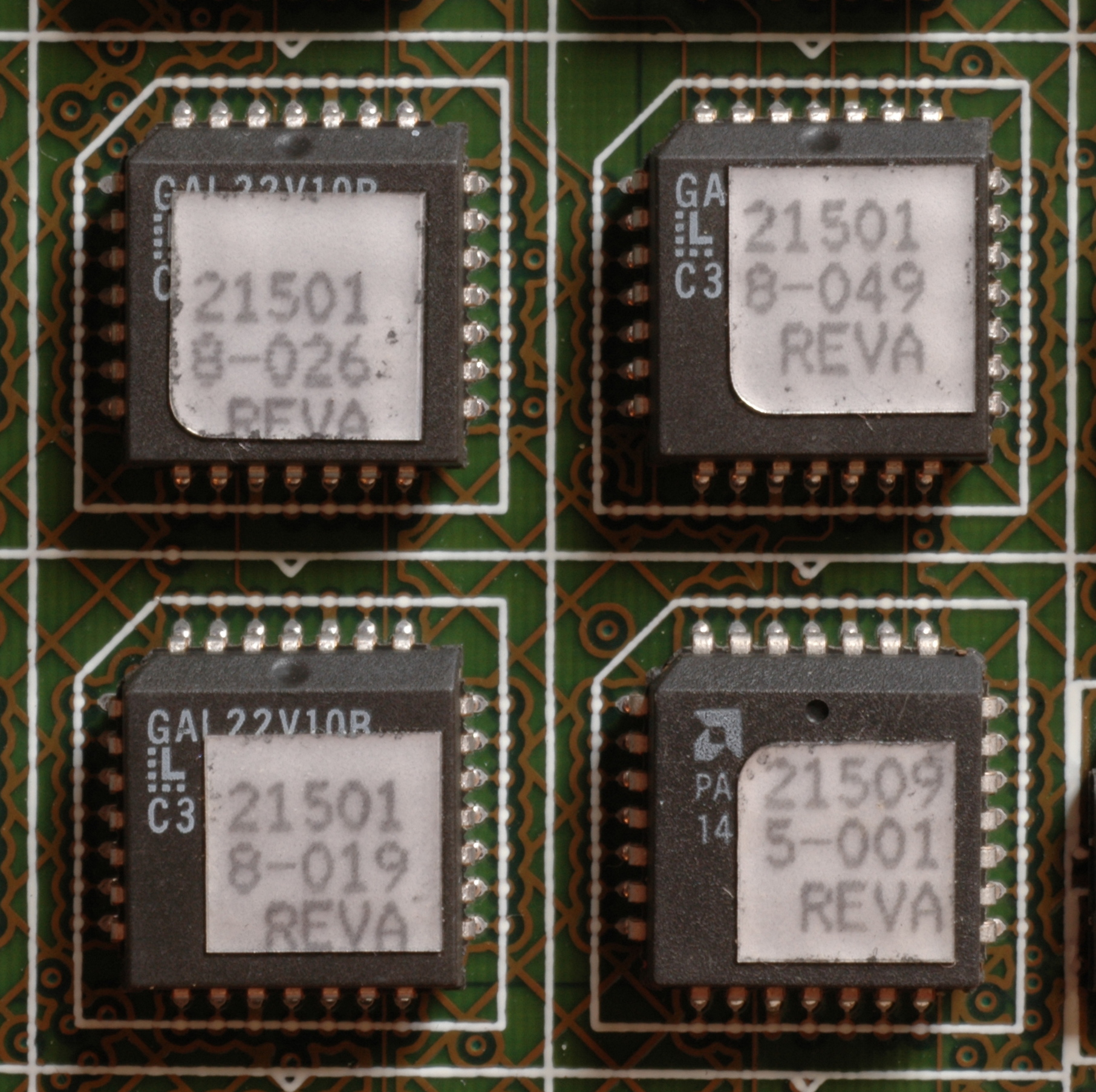

The other board looks like a typical 90s high-end workstation

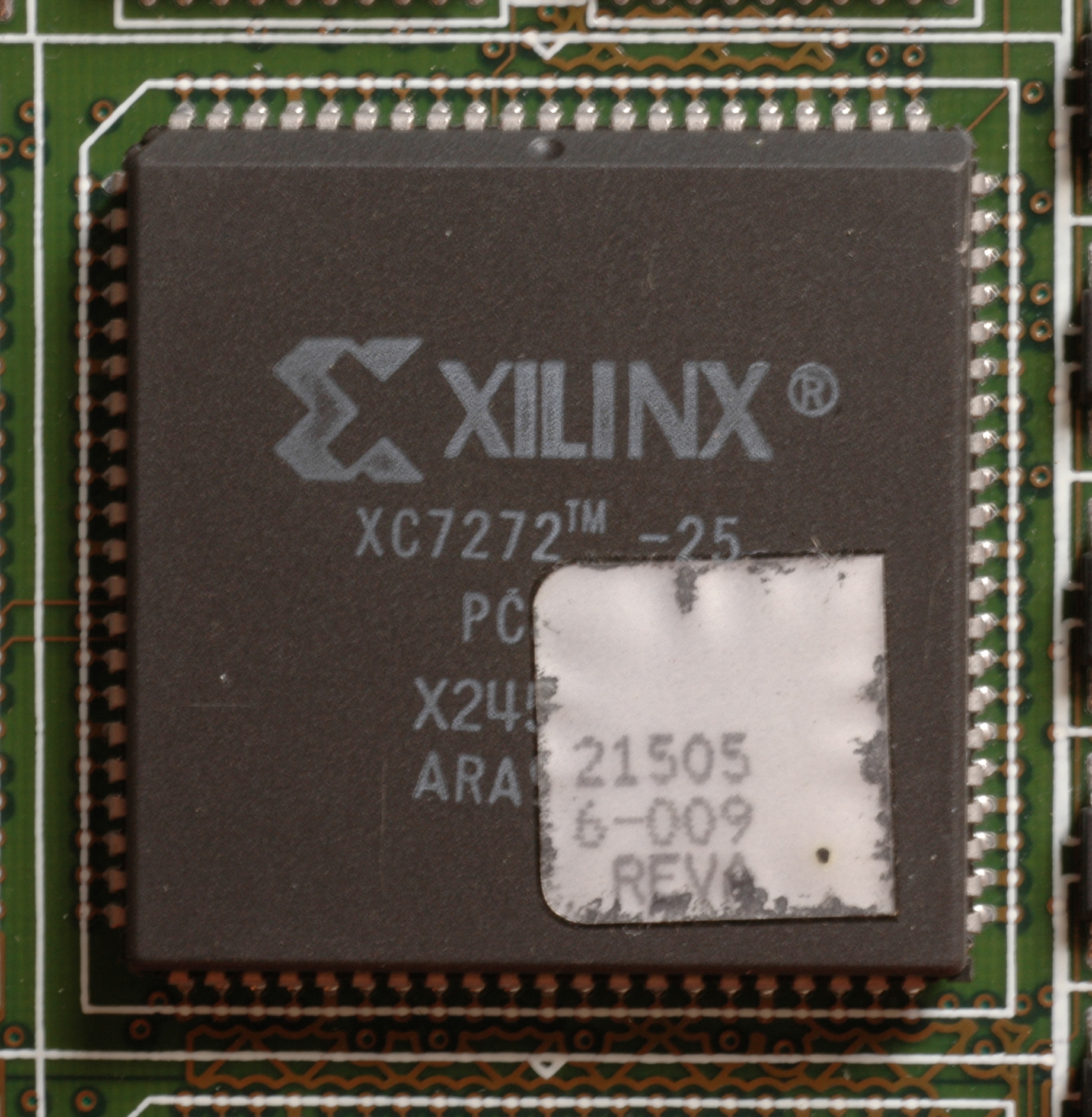

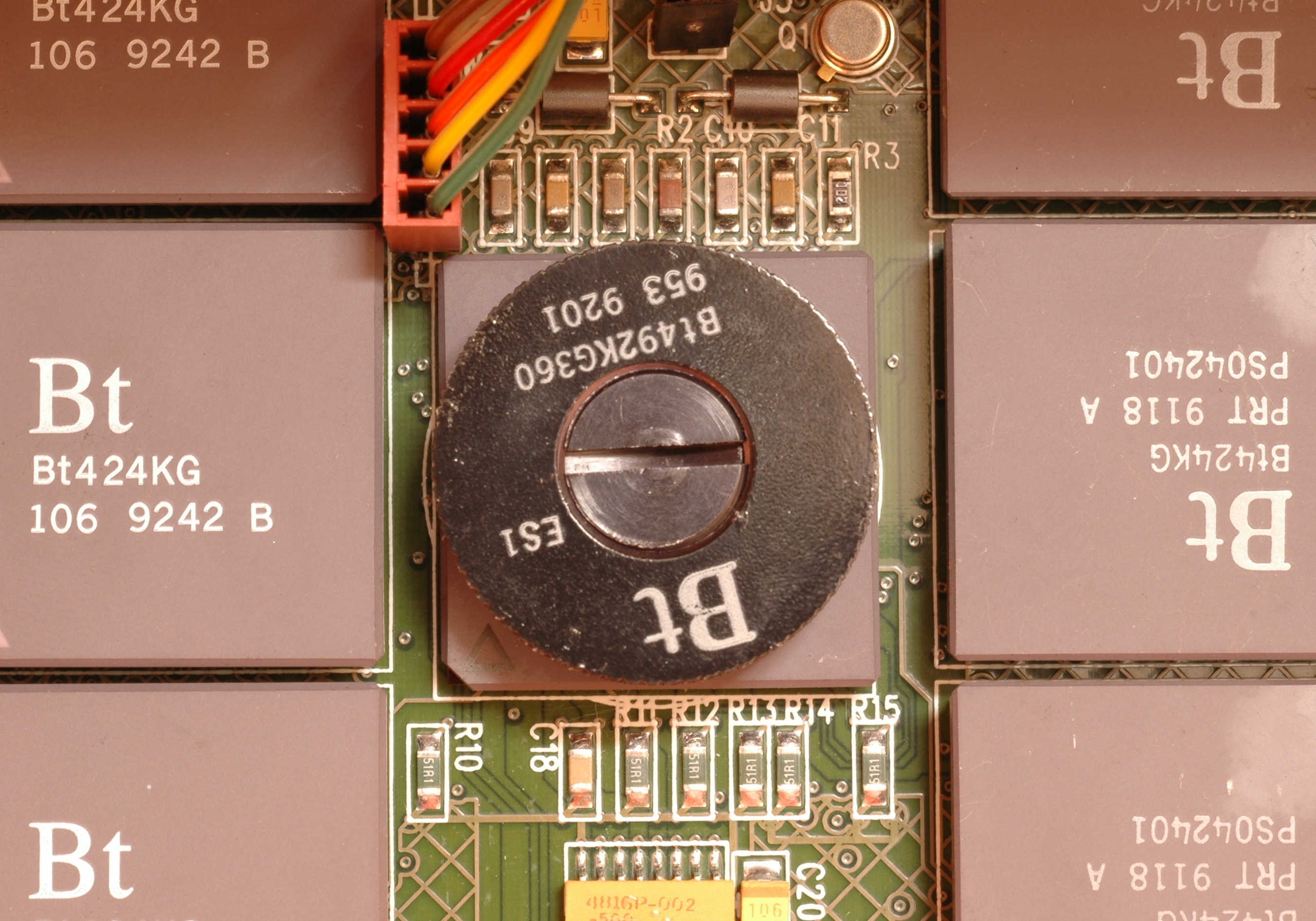

graphics board: 14 Xilinx FPGAs, lots of ram, and a DAC per RGB port.
| Manufacturer |
PsiTech
|
| Model |
HFB 360-08
|
| Classification |
Graphics Display
|
| Introduced |
1990
|
| Implementation |
ECL/CMOS
|
